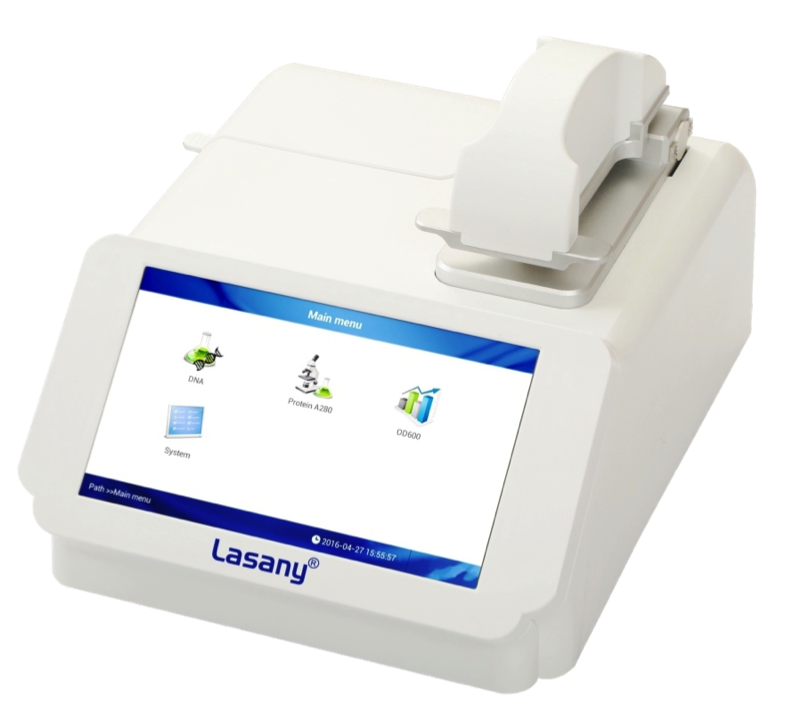

Nano Spectrophotometer Model - LI-5100

li5100
Application

  • Biology Laboratory
  • Molecular Biology
  • Science-and Research
  • University
  • Chemistry


The Nano LI-5100 is a basic UV Spectrophotometer specifically designed   (only two types of wavelength 260nm and 280nm) for nucleic acids and proteins.

Specification


Model

Nano LI-5100
Wavelength Range

260nm, 280nm

Minimum Sample Size

0.5-2.0μl

Path Length

0.2mm (High concentration) 1.0mm (Ordinary concentration)

Light Source

Xenon ash lamp

Detector Type

UV-sillion photocell

Wavelength Accuracy

—

Spectral Resolution

—

Absorbance Precision

0.003Abs

Absorbance Accuracy

1% (7.332Abs at 260nm)

Absorbance Range

0.02 - 80A

Detects Nucleic Acid up to

10-4000ng/ul (dsDNA)

Measurement Time

<15S

Sample Pedestal Materia

USB

Data Output

Aluminum alloy and Quartz ber

Operating Voltage

24V DC

Operating Power Consumption

25W

Standby Power Consumption

5W

Dimension (W x D x H)mm

210 x 280 x 181

Weight

3.6kg

Software Compatibility

Android System

OD600nm Measurement

Light Source

LED

Wavelength Range

600±8nm

Absorbance Range

0-4A


NANO-LI-5100 Highlights

  • Nano-LI-5100 is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260nm and 280nm) for the measurement of nucleic acids and proteins. It is added a function of bacterium cell concentration detection (OD600)
  • Android system operation, 7 inch touch screen no computer, APP soft, simple interface, easy to use
  • The data can be printed with built-in printer, the data can output via SD-RAM Card and USB memory
  • Measure nucleic acids concentration at 260nm, and purity using the 260/280 ratio. Measure purified protein at 280nm





li5100-1

Easy Handling

li5100-2

Adding sample



li5100-3



Measuring sample





li5100-4



Quick And Easy Cleaning
