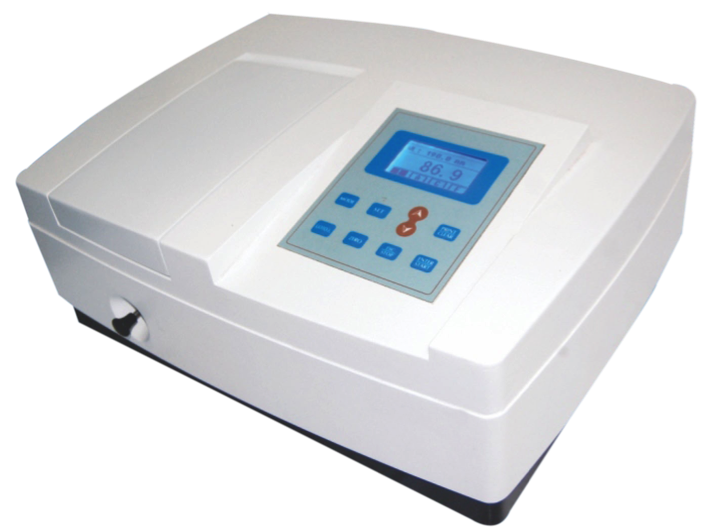

LI-295 UV-VIS Single Beam

295



Features


* Large LCD screen (128*64) Dots.

* Can display and save 50 groups of data, 5 groups per screen.

* Data can be restored after a sudden power cut.

* Auto setting Wavelength

* Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime.

* Automatic WL. Calibration and dark current getting.

* With scanning software



Technical Specification


Optional System:                             Single - Beam, Grating

Wavelength Range:                         190 - 1000nm

Bandwidth:                                       2nm

Wavelength Accuracy:                     ±1nm

Wavelength Repeatability:               0.5nm

Wavelength Setting:                         Auto

Photometric Accuracy:                    ±0.5%T

Photometric Repeatability:               0.3%T

Photometric Range:                         -0.3-3A,0-200%T

Stray Light :                                      <0.3%T

Stability:                                            ±0.002A/h @500nm

Display:                                            128 * 64 Dots LCD

Detector:                                          Silicon Photodiode

Standard Cell Holder:                       4-position 10mm cell changer

Light Source:                                    Tungsten & Deuterium lamp

Output:                                             USB port & Parallel port (printer)

Power Requirements:                      AC 85 ~ 250V

Dimension:                                      420x280x180mm

Weight:                                            2Kg



Standard Configuration



* Main Set                                                                  :          1 no.

* USB Cable                                                               :          1 no.

* Accessory kit. Including a 4 glass cell (1 cm)         :          1 no.

* 2 Quartz Cell (1 cm)                                               :           1 no.

* Operating Manual Software Manual                      :          1 no.

* Dust Cover                                                             :          1 no.

* Software CD                                                          :           1 no.

* Power Cable                                                                             :          1 no.



Download Specification Document



Application


* Medicine/Pharmaceutical Industry

* Environmental Monitoring

* Commodity Inspection

* Food Inspection

* Agricultural Chemistry

* Teaching in Colleges & Universities

* Metallurgy

* Geology

* Machine Manufacturing

* Petrochemical Industries

* Water and Waste Water Labs

* Food and Beverage Labs



The UV VIS 295 Series provide excellent application functions without Sacrificing  accuracy and precision. It is an ideal instrument for various applications
