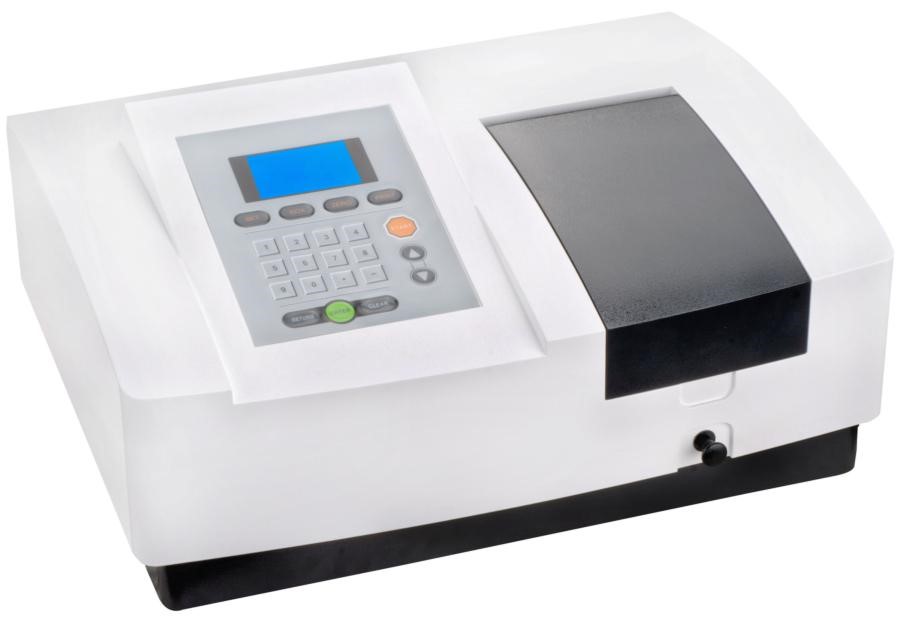

Single Beam Microprocessor UV-VIS Spectrophotometer 294 With Scanning Software

294micro



Model

LI-294

Optical system:

Single Beam, Grating 1200 lines/mm

CT grating monochromator

Wavelength range:

190 nm-1100nm

Wavelength accuracy:

2 nm

Spectral bandwidth

1nm

Wavelength repeatability:

<=0.2 nm

Stray light:

0.15%T

Photometric accuracy:

0.5%T

Photometric repeatability:

0.2%T

Stability:

±0.0002A/h @500nm

Baseline Flatness:

±0.002 A

Noise:

±0.001 A

Wavelength Setting :

Auto

Light Source :

Imported Deuterium & Tungsten lamp

Work Pattern:

T, A, C

Display :

128*64 LCD

Display modes:

4 LCD

Shipping Size :

700*580*340mm

Weight:

20 kg



Features:

1. Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.

2. The instruments is supply with PC software expands the capabilities of the instrument includes

3. Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis,

Multi-wavelength test, etc.

4. Adopts 51 microcomputer system and store 200 test data and 100 standard curves;



5. Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.



Application

* Medicine/Pharmaceutical Industry

* Environmental Monitoring

* Commodity Inspection

* Food Inspection

* Agricultural Chemistry

* Teaching in Colleges & Universities

* Metallurgy

* Geology

* Machine Manufacturing

* Petrochemical Industries

* Water and Waste Water Labs

* Food and Beverage Labs



Standard Configuration

* Main Set                                                             :          1 no.

* USB Cable                                                           :          1 no.

* Accessory kit. Including a 4 glass cell (1 cm)         :          1 no.

* 2 Quartz Cell (1 cm)                                            :          1 no.

* Operating Manual  Software                                 :          1 no.

* Manual Dust Cover                                              :          1 no.

* Software CD                                                       :           1 no.

* Software key                                                       :          1 no.

* Power Cable                                                        :           1 no.
