Digital Automatic Polarimeter LI- P701

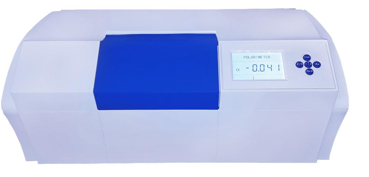

li-p701

A polarimeter is a scientific instrument used to measure the angle of rotation caused by passing polarized light through an optically active substance.

Some chemical substances are optically active, and polarized (uni-directional) light will rotate either to the left (counter-clockwise) or right (clockwise) when passed through these substances. The amount by which the light is rotated is known as the angle of rotation. The angle of rotation is basically known as observed angle.



SALIENT FEATURES

Automatic Polarimeter instrument used to measure specific optical rotation of optically active substance

Measuring optical rotation and sugar degree Storage of three times results

Built in auto controlling system with servomechanism Calculation of average values

Automatic Measurement

Measurement of dark colored sample

RS232 Interface



Specifications



Model



LI-P701







Test Modes



optical rotation, sugar degree

Light source



LED







Wavelength



589nm







Measurement



±45° (optical rotation)  ±120º Z (sugar)

Minimum indicating value



0.001° (optical rotation) 0.01º Z (sugar)







Accuracy



±(0.01+ measurement value x 0.05%)º (optical



rotation)









±(0.03 + measurement value x 0.05%)º Z (sugar







Repeatability



<0.002º  (optical rotation)







Display



LCD







Test tube



200mm, 100mm







Sample transmittance



> 1%

Interface



Rs232

Operation voltage



220V ± 22V,50Hz or 110V, 60HZ







Overall Dimensions



730mm x 480mm x 470mm







Weight (Grass)



36kg




The Automatic polarimeter provide excellent application modes



Without Sacrificing accuracy and precision it is an ideal instrument for various application.


MEASURING MODES

  1. Optical Rotation
  2. Sugar Degree

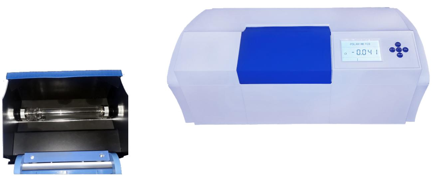

p701

Sample compartment .

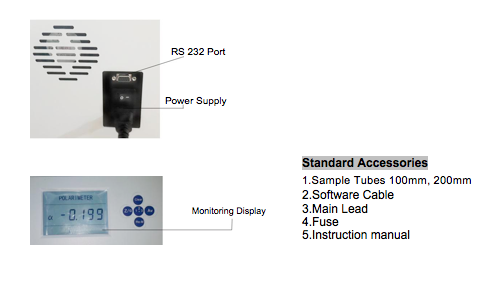

Screen_Shot_2017-09-09_at_4.19.44_PM

  •

APPLICATIONS



Quality and Process Control Application

Pharmaceutical Industry

Flavor, Fragrance and Essential Oil Industry

Food Industry

Chemical Industry

Sugar Industry

Teaching in Colleges & Universities

Research Institute
