Peltier / Sipper System (LI-150)

Technical specification

1. The valid temperature range is from 15ºC to 65ºC

2. The valid sampling time range is from 30s to 10min,

3. The valid peristaltic pump speed range is from 1 to 12

4. The sampling speed is about 50ml/min.

5. Power supply is 220±22V@50±1Hz or 110±11V@60±1Hz.

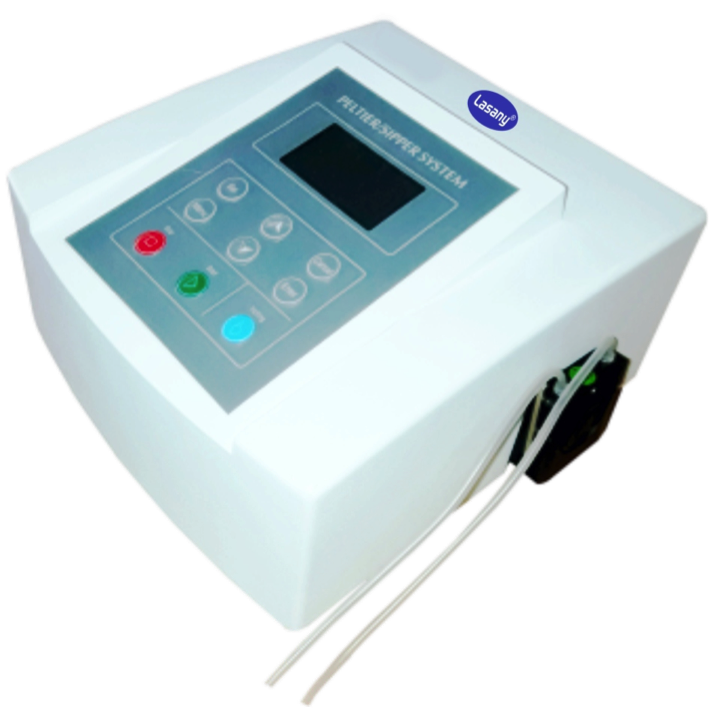

1) Control Unit.

2) Cell holder with Peltier System. (It’s already pre-loaded into the compartment of the spectrophotometer)

3) Control Cable (to connect the Control Unit with the Cell holder with Peltier System).

4) Peristaltic pump pipe. (It’s already pre-loaded into the pump valve of the Control Unit).

5) Power cord.
