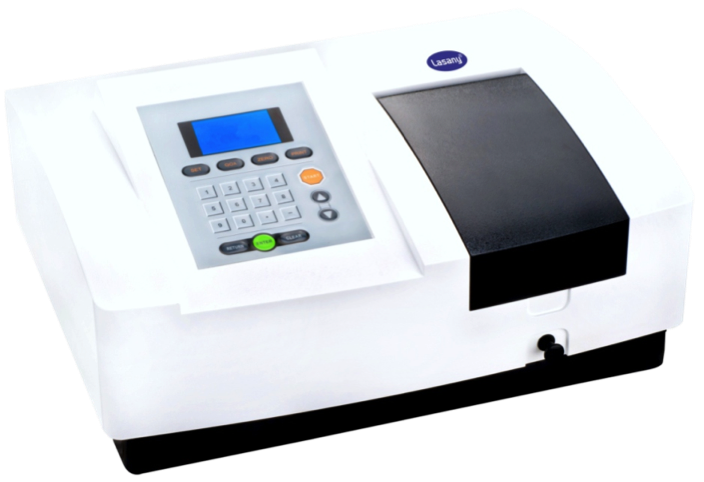

Spectrophotometer LI-294

Applications

* Pharmaceutical Industry

* Environment Monitoring

* Commodity Inspection

* Food Inspection

* Agricultural Chemistry

* Teaching in Colleges & Universities

* Metallurgy

* Geology

* Machine Manufacturing

* Petrochemical Industries

* Water and waste water Labs

* Food and Beverages Labs


Specifications:

Model LI-294
Optical System Single Beam, Grating 1200 lines/mm
Wavelength Range 190~1100nm
Spectral Bandwidth 2 nm
Wavelength Accuracy 1nm
Wavelength Repeatability <=0.2 nm
Photometric Accuracy 0.5%T
Photometric Repeatability 0.2%T
Photometric Range 0 - 200%T, - 0.3 - 3A
Stray light 0.15%T
Stability ±0.0002A/h @500nm
Baseline Flatness ±0.002 A
Noise ±0.001 A
Wavelength Setting Auto
Light Source Imported Deuterium & Tungsten lamp
Display 128*64 LCD
Detector Imported Silicon Photodiode
Output USB port & Parallel port ( Printer)
Power AC 220V/50Hz; AC 110V/60Hz
Dimension 590*460*220mm
Net Weight 16kg
Shipping Size 700*580*340mm
Weight 20kg



Features:

1. Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.

2. The instrument has PC connectivity software expands the capabilities of the instrument includes Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test, etc.

3. Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;

4. Plug type deuterium lamp and tungsten lamp transfer light without optics debugging.


Cell Holder : 50MM cell holder 4 position With Scanning Software


STANDARD CONFIGURATION

Main Set : 1 No.

USB Cable : 1 No.

Accessory kit,Including a 4 glass cell : 1 No.

2 Quartz Cell : 1 No.

Operating Manual : 1 No.

Software Manual : 1 No.

Dust Cover : 1 No.

Software CD : 1 No.

Software Key : 1 No.
